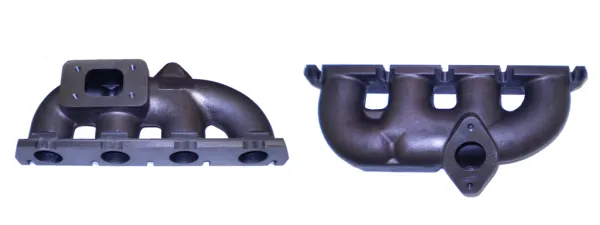

Turbo manifold for TFSI 2.0 liter Golf 5 with T25 flange + WG connection Turbo manifold

Scope of delivery:
- Turbo manifold for TFSI 2.0 liter 1a quality

---

Technical data:
- Cast manifold 1a quality
- T25 flange (hole dimensions measured in the center 73x40mm) 4x M8 thread
- Wastegate connection for 38mm wastegate 2x M8 thread

---

Description:
Our cast manifolds are manufactured in a metal mold from high-quality cast and then CNC-machined, which is characterized by a high fitting accuracy. In contrast to the tubular manifold, this one is more durable. The manifold also has a connection for a wastegate.

---

Suitable for:
- all Audi/VW TFSI 2.0 liter engines
- for turbochargers with T25 flange:

---

Garrett GT2554R, Garrett GT2560R, Garrett GT28R, Garrett GT2860R,  Garrett GT28RS, Garrett GT2860RS, Garrett GT2871R, Garrett GT2876R, Garrett GT3071R

---

Garrett GTX2860R, Garrett GTX2863R, Garrett GTX2867R

---

Borgwarner EFR 6258, Borgwarner EFR 6758

---

GTR-25, GTR-2571, GTR-2871R and other turbos with T25 flange

---

Optional matching accessories:
- Manifold gasket T25 for turbo
- Copper nuts M8
- Stud bolt M8
- Locking plate 38mm for wastegate
- Wastegate 38mm gasket
