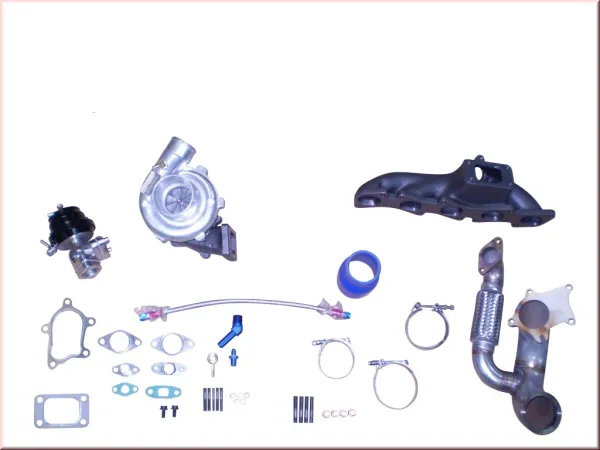

Turbo kit Fiat Coupe 20v Turbo up to 320 hp T3/T60 + exhaust manifold + wastegate

Contents:
  1x metal gasket for T3 flange  2x metal gaskets for 38mm wastegate  1x gasket for T3/T4 oil return  1x high-pressure wide-band clamp 87-79mm for 76mm silicone  1x V-band clamp 63.5mm V2A  1x straight silicone reducer 76x60mm  1x turbocharger T3/T60 T3/T4 60A/R compressor side - 48A/R exhaust side  1x 38mm aluminum CNC-machined wastegate with accessories 0.4 bar  1x M12 ring eye to D04  1x HD wide-band clamp 71-63mm for 60mm silicone  1x silicone vacuum hose ø 6mm length  1x metal gasket for downpipe flange T3/T4, GT30, GT35  5-hole  5x stud bolts M10x40  4x stud bolts M8x35  1x adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing 3mm  1x oil supply line 40cm with D04 fittings  5x copper nut M10 copper nut with 17mm wrench size  4x copper nut M8 copper nut with 13mm wrench size  1x turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection  1x 45° adapter 1/2 NPT > 15mm hose connection  1x elbow is delivered in individual parts for self-welding. Photo is for illustration purposes only

We will customize the turbo for you so that it can be installed in the vehicle. Due to the limited space in the engine compartment, it may still be necessary to adjust the turbo yourself on the vehicle. To do this, simply loosen the screws on the turbo's retaining plates and rotate the turbo into its final position. Then tighten the screws again.

---

Technical data for the turbocharger:
- Compressor housing outer A/R 60
- Compressor wheel 71>54.1mm
- Turbine housing 48 A/R (for early response)
- 360° racing bearing
-  T3 flange (hole dimensions measured at center: 86x45mm)
- oil-cooled

---

- water-cooled
- Shaft is precision-balanced
- up to approx. 1.6 bar

---

Suitable for:
- all Fiat Coupe/Marea/Bravo 20vt Turbo 5-cylinder, including vehicles with air conditioning. To achieve an output of approx. 320 hp, larger injectors e.g. 440cc, a 255L/h fuel pump are also required and the software (chip) must be adjusted.
