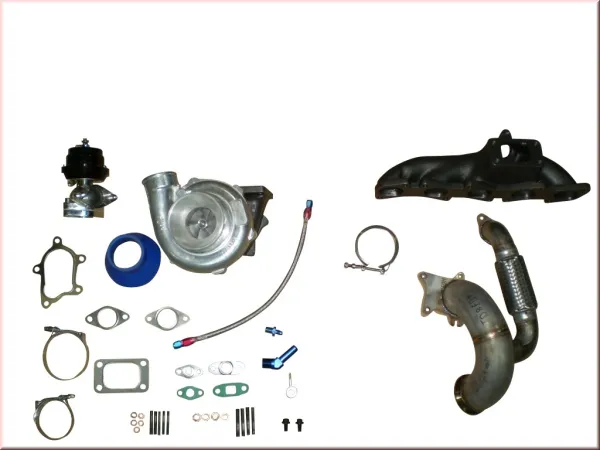

Turbo kit Fiat Coupe 20v Turbo up to 400 hp GT3076 + exhaust manifold + Wastegate up to 400 hp

Package contents:
  1x metal gasket for T3 flange  2x metal gaskets for 38mm wastegate  1x gasket for T3 oil return/T4  1x high-pressure wide-band clamp 116–104 mm for 102 mm silicone  1x V-band clamp 63.5 mm V2A  1x GTR-485 turbocharger (GT3076, GT30)  70A/R compressor side – 63A/R exhaust side  1x 38mm aluminum CNC-machined wastegate with accessories, 0.4 bar  1x M12 ring eye to D04  1x Clamp HD-Wide-band clamp 71–63 mm for 60 mm silicone  1x Silicone vacuum hose, 6 mm diameter, length  1x Metal gasket for Y-pipe flange T3/T4, GT30, GT35  5-hole  5x stud bolts M10x40  1x straight silicone reducer 102x60 mm  4x stud bolts M8x35  1x adapter for oil supply to T3/T4 + GT30 + GT35, plain bearing, 3 mm  1x oil supply line, 40 cm, with D04 connectors  5x copper nut, M10 (17 mm wrench size)  4x copper nut, M8 (13 1x turbo manifold for Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection  1x 45° adapter 1/2 NPT > 15mm hose connection  1x elbow (shipped in separate parts for self-welding). Photo is for illustrative purposes only

We’ll adapt the turbo for you so that it can be installed in the vehicle. Due to limited space in the engine compartment, you may still need to adjust the turbo on the vehicle yourself. To do this, simply loosen the screws on the turbo’s mounting plates and rotate the turbo into its final position. Then tighten the screws again.

---

Turbocharger Technical Specifications:
- Compressor housing outer diameter A/R 70
- Compressor wheel 76>56.5 mm
- Turbine housing 63 A/R
- 360° racing bearings
-  T3 flange (hole dimensions measured at center: 86x45mm)
- Oil-cooled

---

- Water-cooled
- The crankshaft is precision-balanced
- up to approx. 1.8 bar

---

Fits:
- All Fiat Coupe/Marea/Bravo 20VT Turbo 5-cylinder models, including vehicles with air conditioning. To achieve an output of approximately 400 hp, even larger fuel injectors (e.g., 440 cc) and a fuel pump rated at 255 L/hr are required, and the software (chip) must be adjusted.
