G60 8v turbo kit up to 300hp T3/60 8 pcs.

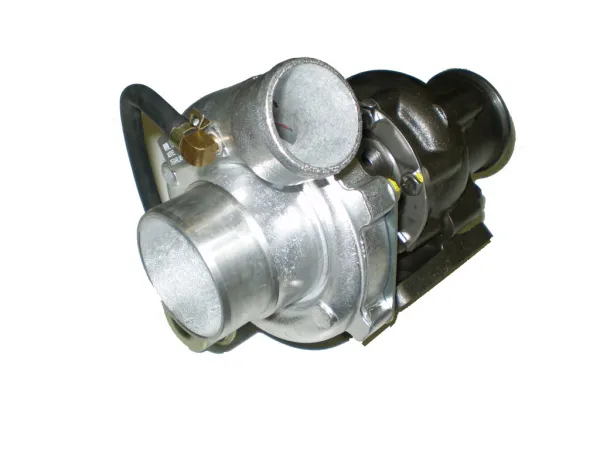

Scope of delivery: 1. turbocharger T3/T60 60A/R water-cooled and oil-cooled internal wastegate 440104

---

2. installation instructions for the respective components

---

3. fuel pressure regulator 130102

---

4. boost pressure regulator (steam wheel) 160100

---

5. intercooler optionally 600x300x76 260111, 550x230x65 260117, 550x180x65 260105 or 550x140x65mm 260104

---

6. pop-off valve + 2 extra strong springs or blow-off valve 330100

---

7. cast turbo manifold with T3 flange 230107

---

Technical data turbocharger:
- Compressor housing outer 76mm A/R 60
- Compressor wheel 71>54mm
- Turbine housing 48 A/R
- 360° degree racing bearings (responds quickly and is more durable compared to the 270° degree turbochargers)
- T3 flange (hole center measured 86x45mm)
- oil-cooled
- water-cooled
- plain bearing
- Shaft is finely balanced
- internal wastegate
- with serial number (important for registration)
- up to 1.6 bar
- up to 360hp

---

- responds early because of the small exhaust housing of 48A/R and pushes properly at the top because of the large fresh air housing of 60A/R with 54 mm intake wheel

---

Suitable for:
- all VW G60 8v 1.8L and 2L engines
