Product description
Scope of delivery:

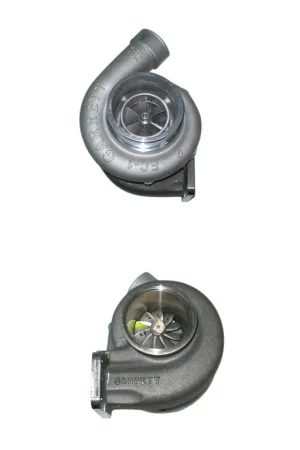

- Turbocharger original Garrett GT3582R High Flow
Technical data:
- Fresh air housing 70A/R - Trim 56
- Turbine housing 1.06A/R - Trim 84
- T3 flange (86x45mm)
- oil-cooled
- water-cooled
- double ball bearing
- 714568-5007S (714568-7)
- up to 400-600hp
Suitable for:
- Engines with displacement from 2L to 4.5L
Description:
With us you get an original Garrett turbocharger. We obtain these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out, etc.
The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is still the older generation T series, these are mostly plain bearing. The GTX series differs from the normal GT in that they have a special, larger impeller with several blades which leads to more power and slightly better response. It is important for the ball bearing turbochargers that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9 mm bore is used for the oil supply. A ball bearing turbo responds about 400-500 rpm earlier than a plain bearing turbo. When choosing the right turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All information such as exhaust housing options, product description, performance map and drawings are available there.
- Turbocharger original Garrett GT3582R High Flow
Technical data:
- Fresh air housing 70A/R - Trim 56
- Turbine housing 1.06A/R - Trim 84
- T3 flange (86x45mm)
- oil-cooled
- water-cooled
- double ball bearing
- 714568-5007S (714568-7)
- up to 400-600hp
Suitable for:
- Engines with displacement from 2L to 4.5L
Description:
With us you get an original Garrett turbocharger. We obtain these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out, etc.
The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is still the older generation T series, these are mostly plain bearing. The GTX series differs from the normal GT in that they have a special, larger impeller with several blades which leads to more power and slightly better response. It is important for the ball bearing turbochargers that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9 mm bore is used for the oil supply. A ball bearing turbo responds about 400-500 rpm earlier than a plain bearing turbo. When choosing the right turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All information such as exhaust housing options, product description, performance map and drawings are available there.
