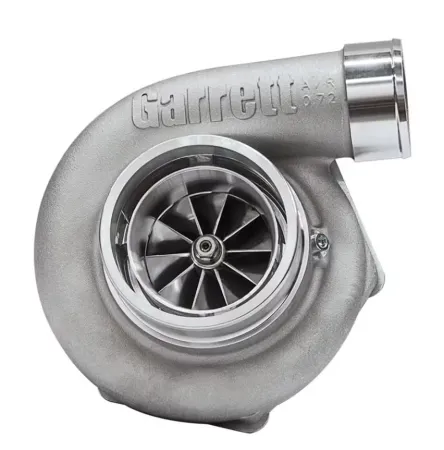

Garrett GTX3584RS GEN II 856804-5004S 550-1000hp V-band 83 A/R V-band ball bearing ceramic ball bearing

Scope of delivery:
- Garrett GTX3584RS GEN II 856804-5004S 550-1000hp V-Band 83 A/R V-Band ball bearing ceramic ball bearing

---

Technical data:
- Exhaust housing 0.83 A/R V-Band inlet 76>60mm - 3" V-Band outlet
- for external wastegate
- Fresh air housing High-Flow 72A/R - Trim 64 - V-Band outlet
- Fresh air wheel: Exducer 84mm - Inducer 67mm
- Ceramic double ball bearing (ball bearing)
- Power 550-1000hp
- oil-cooled
- Part no. 856804-5004S
- Turbine wheel Inconel: Inducer 68mm - Exducer 62mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 2.0 to 5.5L 550-1000hp

---

Description:
With us you receive an original Garrett turbocharger. We obtain these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.

---



---

The Garrett GT and GTX series are all double ball bearing mounted, finely balanced and oil- and water-cooled. There is also the older generation T series, which are mostly plain bearing. The GTX series differs from the standard GT in that it has a special, larger compressor wheel with more blades, which leads to more power and slightly better response. It is important for ball bearing turbochargers that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9mm bore is used for the oil supply. A ball bearing turbo responds approximately 400-500 rpm earlier than a journal bearing turbo. When selecting the correct turbocharger, ask us or check directly on the manufacturer’s website http://turbobygarrett.com/turbobygarrett/turbochargers. All specifications such as exhaust housing options, product description, performance map and drawings are available there.
