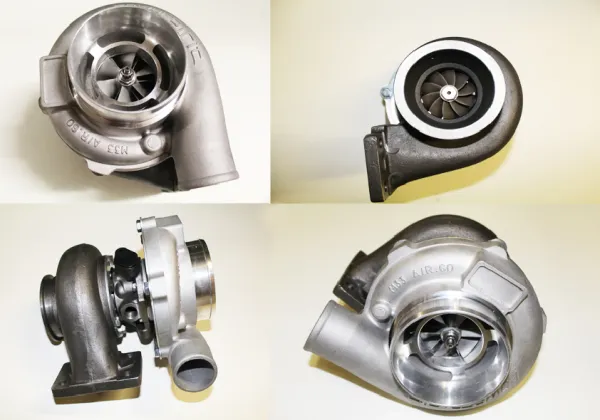

Turbocharger GT3076 HF High Flow 60A/R - 82A/R T3 flange - Vband connection, plain bearing

Scope of delivery:
- GT3076 HF turbocharger
- T3 flange gasket, compatible
- Gasket for oil supply and return

---

Technical specifications:
- Compressor housing, external 102mm A/R 60, rotatable 360 degrees
- Compressor impeller: 76>58mm, milled from aluminum
- Turbine housing 82 A/R, rotates 360 degrees
- T3 flange (hole dimensions 86x45mm)
- Oil-cooled

---

- Water-cooled
- Sliding bearing
- Shaft is precision-balanced
- up to 2 bar
- up to 525 hp
- V-band outlet 76mm
- Water connections M18x1.5mm

---

Suitable for:
- For engines from 1.8L to approx. 4L
- For exhaust manifold with T3 flange

---

Optional matching parts:
- Specific oil and water connection kit for Turbo 440168 GT30: 300187
- Adapter for oil inlet on T3/T4 + GT30 + GT35, plain bearing M12x1.5mm 300103
- Stainless steel V-band weld-on ring 95>76mm 200214
- Gasket for oil return T3/T4 GT40 170109
- V-band gasket ø 76mm 3" V-band gasket 170118
- Metal gasket for T3 flange 170101
- Copper gasket M14 14x18x1.5mm 170116
- Copper gasket M14 14x18x1.5mm 200209
- V-band clamp ø 76mm 3" 350105
- 14mm ring eye for 10mm hose connection 300143
