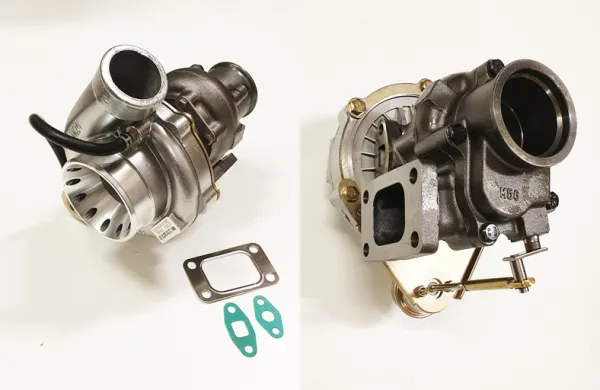

Turbocharger GTR-485 HF (GT3076, GT30) 485hp 360° racing bearings with wastegate T3 flange

Scope of delivery:
- GTR-485 HF turbocharger (GT3076, GT30) 485 hp 360° racing-spec bearing with wastegate T3 flange

---

Technical specifications:
- Compressor wheel: 76>56.5 mm
- Housing: 70 A/R 102mm inlet with high flow
- Turbine housing: 63A/R
- Oil-cooled
- Water-cooled
- Sliding bearing
- With serial number (important for registrations)
- 360° racing bearing (responds quickly and is more durable compared to 270° bearing turbochargers)
- T3 flange
- Internal wastegate opening pressure 0.48 bar

---

Suitable for:
- All manifolds with T3 flange
- For turbo conversions from 1.8L to 3.5L

---

Optional matching parts:
- Adapter for oil inlet on T3/T4 + GT30 + GT35 sliding bearing M12x1.5mm
- Weld-on V-band ring made of stainless steel 63.5-79mm
- Gasket for oil return T3/T4 GT40
- Metal gasket for Y-pipe flange T3/T4, GT30, GT35 5-hole
- Metal gasket for T3 flange
- Copper gasket M14 14x18x1.5mm
- Oil return flange for T3/T4 made of aluminum 1/2 NPT + GT40 GT42
- V-band clamp 63.5mm
- Ring eye M14 to hose connection 10mm
