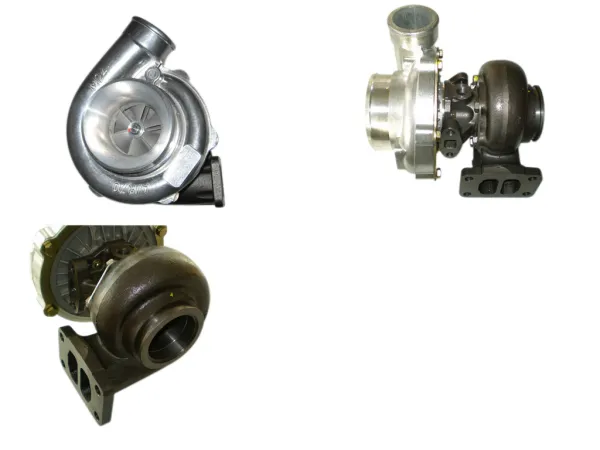

Turbocharger GTR-510 (GT3076, GT30) 510hp 70A/R-82A/R 360° racing bearing T3 flange

Scope of delivery:
- GTR-30 turbocharger
- T3 flange gasket, compatible
- Gasket for oil supply and return

---

Technical specifications:
- Compressor housing outer 102mm A/R 70 inner 57mm inlet
- Turbine housing 82 A/R
- T3 flange (hole dimensions 86x45mm)
- oil-cooled

---

- water-cooled
- sliding bearing
- 360° racing bearing (responds quickly and is more durable compared to 270° bearing turbochargers)
- Shaft is precision balanced
- with serial number (important for registration)
- up to 2 bar
- up to 500 hp

---

Suitable for:
- for engines from 2L up to approx. 4L, ideal for VR6 Turbo
- for manifolds with T3 flange

---

Optional matching parts:
- Adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing M12x1.5mm
- Weld-on V-band ring made of stainless steel 63.5-79mm
- Gasket for oil return T3/T4 GT40
- Metal gasket for Y-pipe flange T3/T4, GT30, GT35 5-hole
- Metal gasket for T3 flange
- Copper gasket M14 14x18x1.5mm
- Oil return flange for T3/T4 made of aluminum 1/2 NPT + GT40 GT42
- V-Band Clamp 63.5mm
- M14 ring eye for 10mm hose connection
