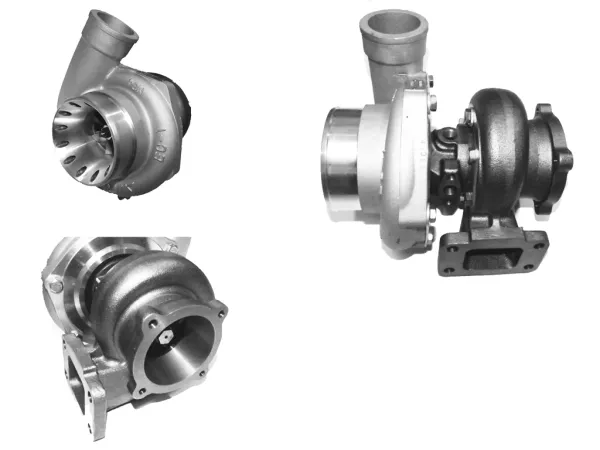

Turbocharger GTR-650 HF (GT3582, GT35) 70A/R water-cooled 61,4mm - 82A/R 4-Bolt

Scope of delivery: - Turbocharger GTR-650
- Gasket T3 flange fitting
- Gasket for oil inlet and return

---

Technical data:
- Compressor housing outer 102mm A/R 70
- Compressor wheel 82>61.4mm
- Exhaust wheel 68mm
- Turbine housing 82 A/R
- T3 flange (hole dimensions 86x45mm)
- oil-cooled

---

- water cooled
- 360° plain bearing
- Shaft is finely balanced
- with serial number (important for registration)
- up to 2.2 bar
- up to 650hp
- Exhaust housing, center section and compressor housing can be rotated 360° as required.

---

Suitable for:
- from 2L to 4.5 L engines

---

Optional matching parts:
- Gasket for Y-pipe flange
- Gasket for manifold flange
- Gasket for water connection
- Banjo bolt for water connection
- Y-pipe flange
- Manifold flange T3
- Ring eye for water connection
- Oil inlet adapter
- Oil return gasket
- Oil return flange
