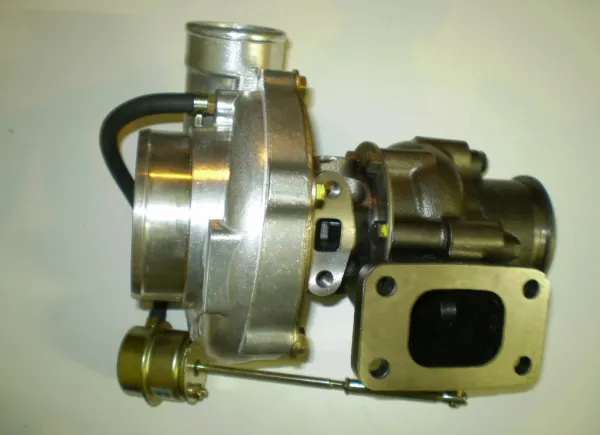

Turbocharger T3/T70 400hp with wastegate 70A/R-48A/R 360° racing bearings T3 flange

Scope of delivery:
- Turbocharger T3/70 with internal wastegate
- Gasket T3 flange fitting
- Gasket for oil inlet and return

---

Technical data:
- Compressor housing outer 102mm A/R 70
- Compressor wheel: 82>61.4mm
- Turbine housing 48 A/R
- Turbine wheel: 63.5>48mm
- T3 flange (hole dimensions measured in the center 86x45mm)
- oil-cooled

---

- water cooled
- 360° degree racing bearings (responds quickly and is more durable compared to the 270° degree turbochargers)
- plain bearing
- Shaft is finely balanced
- with serial number (important for registrations)
- up to 2 bar
- up to 400hp

---

Description:
- Due to the small exhaust housing of 48A/R, the turbocharger is very well suited for small engines from 1.3L to 2L. It responds very early and makes a lot of pressure in the upper rpm range due to the 70A/R fresh air housing. This means that outputs of up to 400hp at approx. 1.5 bar are possible with 1.8L or 2L engines.
- The fresh air housing, the center section and the exhaust housing can be rotated 360°. This means that the turbocharger can be rotated as required.

---

Suitable for:
- Engines from 1.6L to 2.5L
- e.g. G40, G60, 1.8T, 1.8 and 2L 16v or 8v, Fiat Uno Turbo, Fiat Coupe 16v, Opel C20Let

---

Optional matching parts:
- Adapter for oil inlet on T3/T4 + GT30 + GT35 plain bearing M12x1.5mm
- Weld-on ring V-band made of stainless steel 63.5-79mm
- Gasket for oil return T3/T4 GT40
- Metal gasket for Y-pipe flange T3/T4, GT30, GT35 5-hole
- Metal gasket for T3 flange
- Copper gasket M14 14x18x1.5mm
- Flange for oil return for T3/T4 made of aluminum 1/2 NPT + GT40 GT42
- Clamp V-band 63.5mm
- Ring eye M14 to hose connection 10mm
