Turbo kit Fiat Coupe 20v Turbo up to 450 hp GT3082HF + exhaust manifold + WG up to 450 hp

Contents:

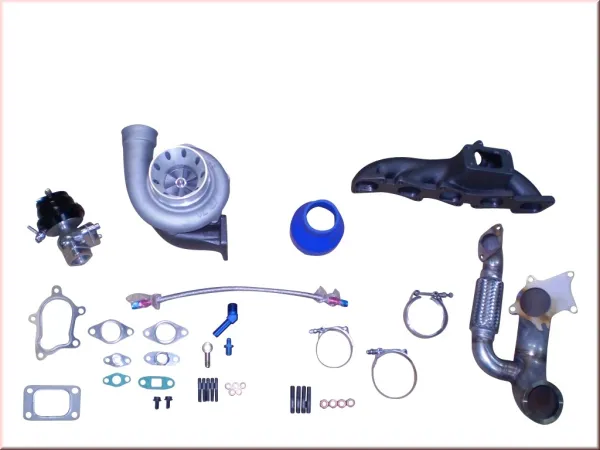

  1x metal gasket for T3 flange  2x metal gaskets for 38mm wastegate  1x gasket for T3/T4 oil return  1x Clamp, high-pressure wide-band Clamp 116-104mm for 102mm silicone  1x Clamp, V-band 63.5mm V2A  1x wastegate 38mm aluminum CNC-machined with accessories 0.4 bar  1x M12 to D04 ring fitting  1x HD wide-band Clamp 71-63mm for 60mm silicone  1x silicone vacuum hose, 6mm diameter, length  1x metal gasket for Y-pipe flange T3/T4, GT30, GT35  5-hole  1x Turbocharger GTR-525 HF (GT3082, GT30/40 ) 70A/R 360° racing bearings  5x stud bolts M10x40  1x straight silicone reducer 102x60mm  4x stud bolts M8x35  1x adapter for oil inlet on T3/T4 + GT30 + GT35 with 3mm plain bearings  1x oil supply line 40cm with D04 fittings  5x copper nut M10 (17mm wrench size)  4x copper nut M8 (13mm wrench size)  1x turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection  1x 45° adapter 1/2 NPT > 15mm hose connection  1x elbow supplied in individual parts for self-welding. Photo is for illustration purposes only


We will customize the turbo for you so that it can be installed in the vehicle. Due to limited space in the engine compartment, you may still need to adjust the turbo yourself on the vehicle. To do this, simply loosen the screws on the turbo’s mounting plates and rotate the turbo into its final position. Then tighten the screws again.

rn

---

rnTechnical data for the turbocharger:
- Compressor housing, external A/R 70 High Flow
- Supercharger impeller 82>61.4 mm
- Turbine housing 63 A/R
- 360° racing bearings
-  T3 flange (hole dimensions measured at center: 86x45mm)
- Oil-cooledrn

---

rn- Water-cooled
- The shaft is precision-balanced
- up to approx. 2 barrn

---

rnSuitable for:
- All Fiat Coupe/Marea/Bravo 20VT Turbo 5-cylinder models, including vehicles with air conditioning.rn

---

rn To achieve an output of approx. 450 hp, even larger fuel injectors (e.g., 440 cc) and a fuel pump rated at 255 L/h are required, and the software (chip) must be adjusted. Additionally, reinforced pistons and connecting rods should be installed.
