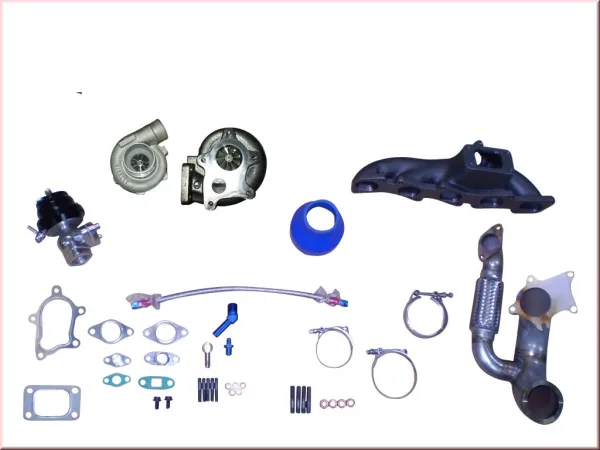

Turbo kit for Fiat Coupe 20v + turbo up to 420 hp with Garrett GT2871R + exhaust manifold + Wastegate

Scope of delivery:
聽 1x metal gasket for T3 flange聽 2x metal gasket for 38mm wastegate聽 1x gasket for oil return T3/T4 GT40聽 1x HD wide band clamp 87-79mm for 76mm silicone, stainless steel 19mm wide聽 1x V-band clamp 63.5mm聽 1x straight silicone reducer 76x60mm inner diameter blue L 100mm 4-ply 5mm walls聽 1x Wastegate 38mm aluminum CNC-milled with accessories 0.4 bar for VR6 16v turbo聽 1x ring eye M12 on D04聽 1x HD wide band clamp 71-63mm for 57-60mm silicone, stainless steel 19mm wide聽 1x silicone vacuum hose ø 6mm length 1 meter blue聽 1x metal gasket for downpipe flange T3/T4, GT30, GT35聽 5-hole聽 5x stud M10x40 stud bolt聽 4x stud M8x35 stud bolt聽 1x adapter for oil feed to T3/T4 + GT30 + GT35 journal bearing 3mm M12x1.5聽 5x copper nut M10 nut out of copper with 14mm wrench size聽 4x copper nut M8 nut out of copper with 12mm wrench size聽 1x turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG-Connection Turbo Manifold聽 1x adapter 45° 1/2 NPT > hose connection 15mm聽 1x elbow supplied in individual parts for self-welding. Photo serves only as an example聽 1x oil feed line聽 D04 7/16 UNF 90° + M12 ring eye聽 connections 50cm PTFE Teflon聽 1x Garrett GT2871R - 743347-5001S/5004S with T3 flange and 5-hole downpipe flange

---

Technical data turbocharger:
- Garrett GT2871R 743347-5002S
- Turbine housing 63A/R or 82A/R optional
- double ball bearing
- 聽T3 flange (hole size measured center-to-center: 86x45mm)
- oil-cooled

---

- water-cooled
- Shaft is finely balanced
- up to 475hp

---

fits for:
- all Fiat Coupe/Marea/Bravo 20vt Turbo 5 cylinder,聽also vehicles with air conditioning.聽In order to achieve approximately 360hp, even larger injectors, e.g. 440cc, fuel pump 255L/hour are required and the software (chip) must be adapted.
