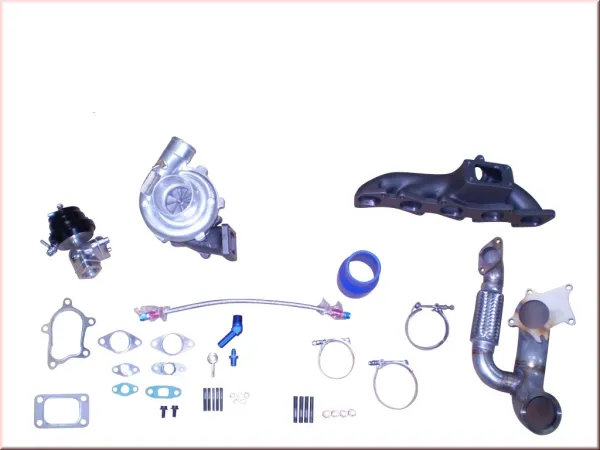

Turbo kit for Fiat Coupe 20v Turbo up to 360 hp T3/T4 + exhaust manifold + WG

Contents:
  1x metal gasket for T3 flange  2x metal gaskets for 38mm wastegate  1x gasket for T3/T4 oil return  1x high-pressure wide-band clamp 87-79mm for 76mm silicone  1x V-tape 63.5mm V2A  1x straight silicone reducer 76x60mm  1x turbocharger T3/T4 60A/R compressor side - 63A/R exhaust side - 360° racing  1x 38mm aluminum CNC-machined wastegate with accessories 0.4 bar  1x M12 ring eye to D04  1x HD wide-band clamp 71-63mm for 60mm silicone  1x silicone vacuum hose ø 6mm length  1x metal gasket for Y-pipe flange T3/T4, GT30, GT35  5-hole  5x stud bolts M10x40  4x stud bolts M8x35  1x adapter for oil supply to T3/T4 + GT30 + GT35, plain bearing 3mm  1x oil supply line 40cm with D04 fittings  5x copper nut M10 (17mm wrench size)  4x copper nut M8 (13mm wrench size)  1x turbo manifold Fiat Coupe 20v Turbo 20vT T3 + 38mm WG connection  1x 45° adapter 1/2 NPT > 15mm hose connection  1x elbow supplied in individual parts for self-welding. Photo is for illustration purposes only

We will customize the turbo for you so that it can be installed in the vehicle. Due to limited space in the engine compartment, you may still need to adjust the turbo yourself on the vehicle. To do this, simply loosen the screws on the turbo’s mounting plates and rotate the turbo into its final position. Then tighten the screws again.



rn

---

rnTechnical data for the turbocharger:
- Compressor housing, external A/R 60
- Compressor wheel 71>54.1 mm
- Turbine housing 63 A/R
- 360° racing bearings
-  T3 flange (hole dimensions measured at center: 86x45mm)
- Oil-cooledrn

---

rn- Water-cooled
- The shaft is precision-balanced
- up to approx. 1.6 barrn

---

rnSuitable for:
- All Fiat Coupe/Marea/Bravo 20VT Turbo 5-cylinder models, including vehicles with air conditioning. To achieve an output of approx. 360 hp, larger fuel injectors (e.g., 440 cc) and a fuel pump rated at 255 L/h are required, and the software (chip) must be adjusted.
