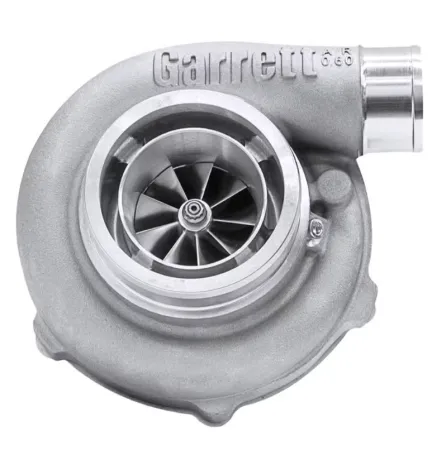

Garrett GTX3076R GEN II 856801-5040S 400-750hp T3 1.06 A/R 5-hole WG ball bearing ceramic ball bearing

Scope of delivery:
- Garrett GTX3076R GEN II 856801-5040S 400-750hp T3 1.06 A/R 5-hole WG ball bearing ceramic ball bearing

---

Technical data:
- Exhaust housing 1.06 A/R T3 inlet - 5-hole outlet
- for external wastegate
-  Fresh air housing High-Flow 60A/R - Trim 58
- Fresh air wheel: Exducer 76mm - Inducer 58mm
- internal wastegate without pressure can
- Ceramic double ball bearing
- Power 400-750hp
- oil-cooled
- Part no. 856801-5040S
- Turbine wheel Inconel: Inducer 60mm - Exducer 55mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 1.8L to 3.0L 400-750hp

---

Description:
With us you receive an original Garrett turbocharger. We source these from Garrett distributors, so you can be sure that the turbos are original. Garrett is one of the few turbocharger manufacturers that subjects the turbos to several qualification tests, which means you always get a top product. Among other things, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out etc.

---



---

The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is also the older generation T series which are mostly plain bearing. The GTX series differs from the normal GT in that it has a special, larger compressor wheel with more blades which leads to more power and slightly better response. It is important with the ball bearing turbochargers that they do not receive too much oil pressure. Therefore, an oil restrictor with 0.9mm bore is used for the oil supply. A ball-bearing turbo responds comparatively approx. 400-500 rpm earlier than a plain bearing one. When selecting the correct turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. There you will find all information such as exhaust housing options, product description, performance map and drawings.
