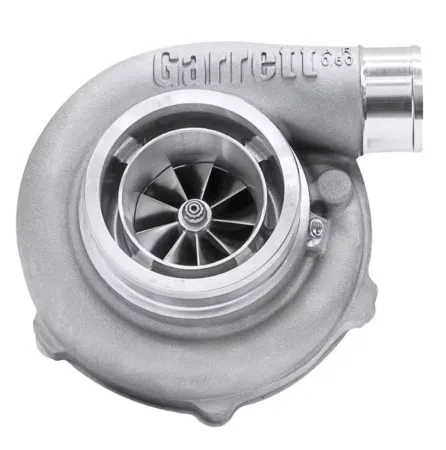

Garrett GTX3076R GEN II 856801-5041S 400-750hp T3 82 A/R 5-hole WG ball bearing ceramic ball bearing

Scope of delivery:
- Garrett GTX3076R GEN II 856801-5041S 400-750HP T3 82 A/R 5-hole WG ball bearing ceramic ball bearing

---

Technical Specifications:
- Exhaust housing 82 A/R T3 inlet - 5-hole outlet
- for external wastegate
-  High-Flow 60A/R intake housing - Trim 58
- Fresh air wheel: Exducer 76mm - Inducer 58mm
- Internal wastegate without actuator
- Ceramic double ball bearing
- Power 400-750HP
- Oil-cooled
- Part No. 856801-5041S
- Turbine wheel Inconel: Inducer 60mm - Exducer 55mm - Trim 84
- Water-cooled

---

Suitable for:
- Engines with displacement from 1.8L to 3.0L 400-750HP

---

Description:
We offer original Garrett turbochargers. We source these from Garrett distributors, so you can be sure the turbos are genuine. Garrett is one of the few turbocharger manufacturers that subjects the turbos to multiple qualification tests, meaning you always get a top product. Among other things, a 1,000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out, etc.

---



---

The Garrett GT and GTX Series are all double ball bearing, finely balanced and oil- and water-cooled. There is also the older Generation T Series, which are mostly sleeve bearing. The GTX Series differs from the normal GT in that it features a special, larger compressor wheel with several blades, resulting in more power and slightly better response. It is important with ball bearing turbochargers that they do not receive too much oil pressure. For this reason, an oil restrictor with a 0.9mm bore is used at the oil supply. A ball bearing turbo responds approximately 400-500 rpm earlier than a sleeve bearing one. When selecting the right turbocharger, please ask us or check directly on the manufacturer’s homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All information such as exhaust housing options, product description, performance map, and drawings are available there.
