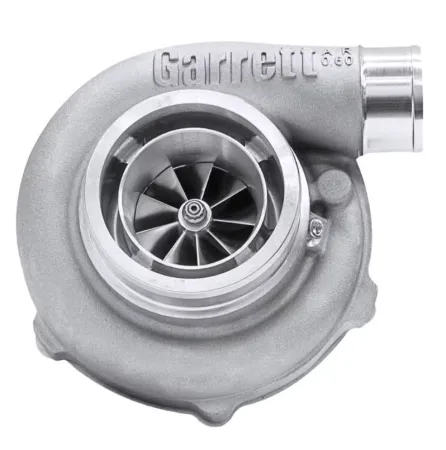

Garrett GTX3076R GEN II 856801-5042S 400-750hp T3 63 A/R 5-hole WG ball bearing ceramic ball bearing

Scope of delivery:
- Garrett GTX3076R GEN II 856801-5042S 400-750 HP T3 63 A/R 5-hole WG ball bearing ceramic ball bearing

---

Technical Specifications:
- Exhaust housing 63 A/R T3 inlet - 5-hole outlet
- for external wastegate
-  High-Flow 60A/R intake housing - Trim 58
- Fresh air wheel: Exducer 76mm - Inducer 58mm
- internal wastegate without actuator
- ceramic double ball bearing
- Power 400-750 HP
- oil-cooled
- Part No. 856801-5042S
- Turbine wheel Inconel: Inducer 60mm - Exducer 55mm - Trim 84
- water-cooled

---

Suitable for:
- Engines with displacement from 1.8L to 3.0L 400-750 HP

---

Description:
We offer a genuine Garrett turbocharger. We source these from Garrett distributors, so you can be sure that the turbos are genuine. Garrett is one of the few turbocharger manufacturers that subjects its turbos to multiple qualification tests, meaning you always get a top product. Among others, a 1000-hour durability test is carried out on an engine in a Garrett engineering laboratory, thrust bearing test, the maximum tolerance of the bearing system is checked as well as material fatigue, a vibration test is carried out, etc.

---



---

The Garrett GT and GTX series are all double ball bearing, finely balanced and oil- and water-cooled. There is also the older generation T series, which are mostly slide bearing. The GTX series differs from the normal GT in that it has a special, larger compressor wheel with more blades which leads to more power and slightly better response. It is important with ball bearing turbochargers that they do not get too much oil pressure. Therefore, an oil restrictor with a 0.9 mm bore is used for the oil supply. A ball bearing turbo responds about 400-500 rpm earlier than a slide bearing turbo. When choosing the right turbocharger, ask us or check directly on the manufacturer's homepage http://turbobygarrett.com/turbobygarrett/turbochargers. All information such as exhaust housing options, product description, performance map and drawings can be found there.
