Turbo kit / turbocharger T3/T60 <340hp for Fiat/Lancia 16v 8v Turbo Delta Integrale

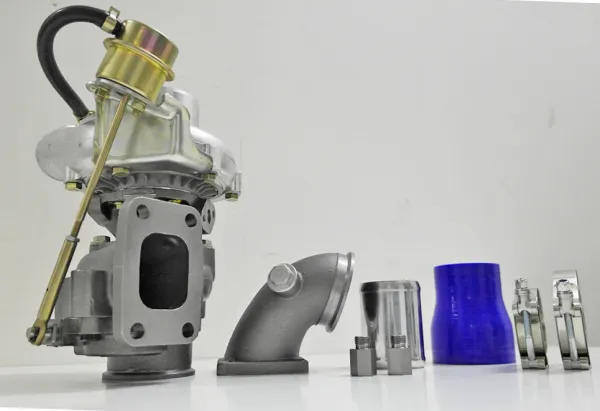

Scope of delivery:
  1x Turbocharger T3/T60 T3/4 360hp with wastegate 60A/R-48A/R 360° racing bearing T3 flange 440104
  1x Metal gasket for T3 flange
  1x Aluminum pipe connector ø 60mm - L 80mm - 1.5mm wall thickness flanged 271206
  1x Clamp HD wide band clamp 87-79mm for 76mm silicone made of stainless steel 19mm wide
  1x Clamp V-band 63.5mm 350106
  1x Straight silicone reducer 76x60mm inner diameter blue L 100mm 4-ply 5mm wall thickness 380180
  1x Clamp HD wide band clamp 71-63mm for 57-60mm silicone made of stainless steel 19mm wide
  1x Elbow / downpipe cast for Fiat Coupe 2.0L 16v Turbo, Lancia Delta Integrale

---

---

Technical data turbocharger:
- Compressor housing outer ø 76mm inlet 60 A/R
- Compressor wheel 71>54mm
- Turbine housing 48 A/R
- Turbine wheel 64>48mm
-  360° degree racing bearing
- T3 flange (hole dimensions measured in the center: 86x45mm)
- oil-cooled

---

- water-cooled
- Shaft is finely balanced
- up to approx. 1.6 bar
- up to 340hp

---

suitable for:
- Fiat/Lancia 16v Turbo 4 cylinder 2.0 liter.
- Fiat/Lancia 8v Turbo with catalytic converter 4 cylinder 2.0 liter.

---

The old turbo is simply replaced with the new one. No welding necessary. Oil and water connections fit from the old turbo, but the oil supply line should definitely be replaced. The original intercooler must be relocated because the intake is 76mm and the original intake hose no longer fits.

---

We would like to point out that the installation of this item constitutes a modification that invalidates the vehicle's operating permit in accordance with the StVZO. Not permitted for use on public roads.

---



---

It may be possible to register the turbo kit according to §21 StVZO after successful exhaust, noise, and performance measurement.
