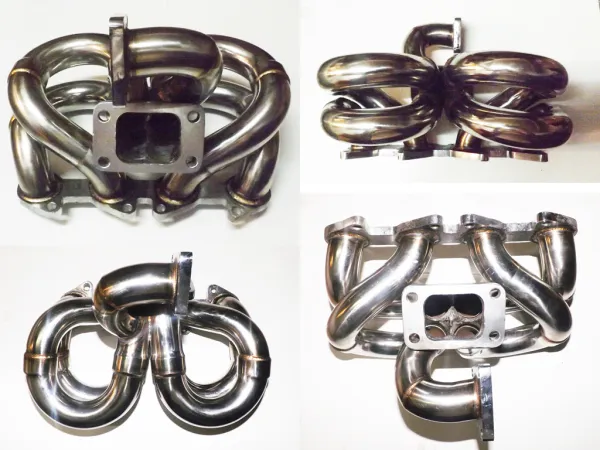

Turbo manifold for VW Golf 16v header manifold stainless steel T25/RS2 + Audi WG flange

Scope of delivery:
- 16v stainless steel turbo manifold

---

Technical specifications.
- T25 turbocharger flange (73x40mm) + S2/RS2 flange 4x M8 threads
- Audi S2/RS2 wastegate flange 4x M8 threads
- Pipe inner diameter ø 37mm
- Wall thickness 2.5mm

---

Product description:
The manifold was adapted in a Golf 1 16v Turbo with Garrett GT3582R.

---

Compatible with:
- Golf 1 16v 1.8L and 2L VW engines
- K24 or K26 flange, S2 turbocharger, RS2 turbocharger
- with minor modifications on the downpipe side for turbochargers with T25 flange:

---

Garrett GT2554R, Garrett GT2560R, Garrett GT28R, Garrett GT2860R, Garrett GT28RS, Garrett GT2860RS, Garrett GT2871R, Garrett GT2876R, Garrett GT3071R

---

Garrett GTX2860R, Garrett GTX2863R, Garrett GTX2867R

---

Borgwarner EFR 6258, Borgwarner EFR 6758

---

GTR-25, GTR-2571, GTR-2871R and other turbos with T25 flange

---

Optional matching accessories:
- T25 manifold gasket to turbo
- M8 copper nuts
- M8 studs
- 38mm cover plate for wastegate
- 38mm wastegate gasket
