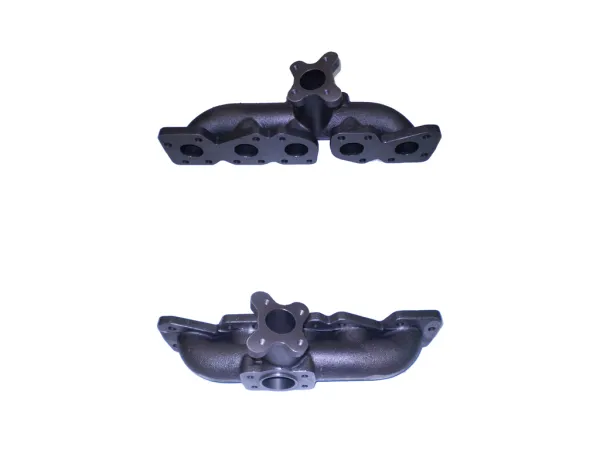

Turbo manifold upgrade for Audi S2/RS2 exhaust manifold with K24 T25 flange + RS2 wastegate

Scope of delivery:
- Cast nickel turbo manifold for Audi S2/RS2 with K24 T25 flange + Audi S2 wastegate connection

---

Technical data:
- Cast nickel turbo manifold
- T25 (73x40mm) 4x M8 thread
- Wastegate connection 35/38mm or Audi S2 4x M8 thread
- Wastegate flange can also be closed so that you can use turbochargers with internal wastegate

---

Description:
- Turbo manifold for all Audi S2 and RS2 models. The manifold has a larger pipe routing than the original RS2. This allows high performance to be achieved. Adjustments may be required.

---

Our cast manifolds are manufactured in a metal mold from high-quality cast and then CNC-machined, which is characterized by a high fitting accuracy. In contrast to the tubular manifold, this one is more durable. The manifold also has an additional connection for a wastegate.

---

suitable for:
- all Audi 5 cylinder 20v engines
- K24 or K26 flange, S2 turbocharger, RS2 turbocharger
- with slight modifications on the downpipe side for turbochargers with T25 flange:

---

Garrett GT2554R, Garrett GT2560R, Garrett GT28R, Garrett GT2860R, Garrett GT28RS, Garrett GT2860RS, Garrett GT2871R, Garrett GT2876R, Garrett GT3071R

---

Garrett GTX2860R, Garrett GTX2863R, Garrett GTX2867R

---

Borgwarner EFR 6258, Borgwarner EFR 6758

---

GTR-25, GTR-2571, GTR-2871R and other turbos with T25 flange

---

Optional matching accessories:
- Manifold gasket T25 to turbo
- Copper nuts M8
- Stud bolts M8
- Locking plate 38mm for wastegate
- Wastegate 38mm gasket
