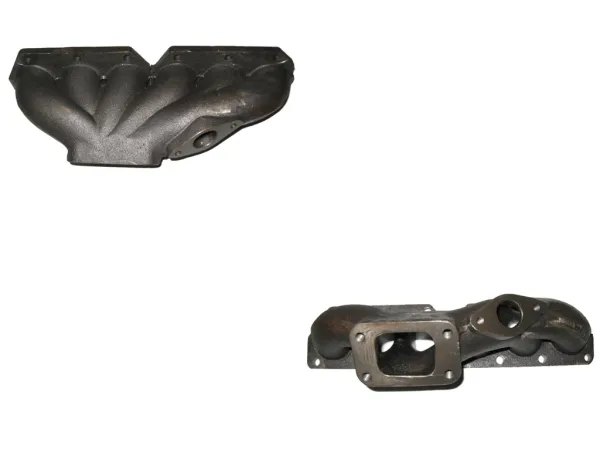

Turbo manifold R32 V6 Golf 4 A3 3.2L nickel cast T3 flange + 38mm turbo manifold

Scope of delivery: - VW R32 V6 turbo manifold high quality cast with wastegate connection 35/38mm.

---

Technical data:
- Cast turbo manifold
- T3 flange (hole center measured 86x45mm) 4x M10 thread
- Wastegate connection 35 or 38mm 2x M8 thread
- Wastegate flange can also be closed so that you can use turbochargers with internal wastegate

---

Description:
Our  cast manifolds are manufactured in a metal mold from high quality cast and then CNC machined, which is characterized by a high fitting accuracy. In contrast to the tubular manifold, this one is more durable. The flange to the cylinder head is slotted so that the manifold can expand and does not tear. The manifold also has an additional connection for a wastegate.

---

Suitable for:
- all VW R32 or V6 2.8L and 3.2L 24v engines
- Turbocharger with T3 flange:

---

Garrett T3, Garrett T3/T4, Garrett GT3076R, Garrett GT3582R

---

Garrett GTX3071R, Garrett GTX3076R, Garrett GTX3576R, Garrett GTX3582R, Garrett GT3776, Garrett GT3782

---

T3, T3/T60,T3/T4, T3/T70, GT3076 HF, GTR-485, GTR-510, GTR-525, GTR-525 HF, GTR-550, GTR-550 HF, GTR-600, GTR-650, GTR-650 HF

---

Optional matching accessories:
- Manifold gasket T3 for turbo
- Copper nuts M8
- Copper nuts M10
- Stud bolt M10
- Stud bolt M8
- Locking plate 38mm for wastegate
- Wastegate 38mm gasket
