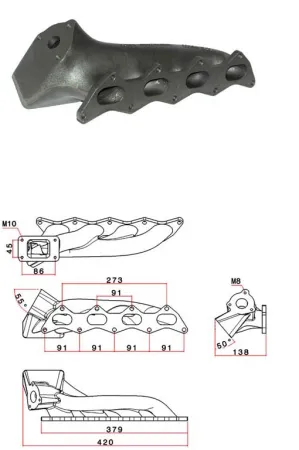

Turbo exhaust manifold Lancia/Fiat Delta Integrale Coupe 2.0 16v Turbo T3 cast exhaust manifold

Scope of delivery:
- Spa turbo manifold for Fiat/Lancia 2.0L 16v

---

Technical data:
- made from cast iron
- T3 flange (hole dimensions 86x45mm) 4x M10 thread
- with external wastegate connection 3x M8 thread

---

suitable for:
- all Fiat/Lancia 2.0L 16v
- Turbocharger with T3 flange:
- original turbo

---

Garrett T3, Garrett T3/T4, Garrett GT3076R, Garrett GT3582R

---

Garrett GTX3071R, Garrett GTX3076R, Garrett GTX3576R, Garrett GTX3582R, Garrett GT3776, Garrett GT3782

---

T3, T3/T60,T3/T4, T3/T70, GT3076 HF, GTR-485, GTR-510, GTR-525, GTR-525 HF, GTR-550, GTR-550 HF, GTR-600, GTR-650, GTR-650 HF

---

Optional matching accessories:
-  Manifold gasket T3 to turbo
-  Manifold gasket T4 for turbo
-  Copper nuts M8
-  Copper nuts M10
-  Stud bolt M10
-  Stud bolt M8
-  Closing plate 38mm for wastegate
-  Wastegate 38mm gasket
