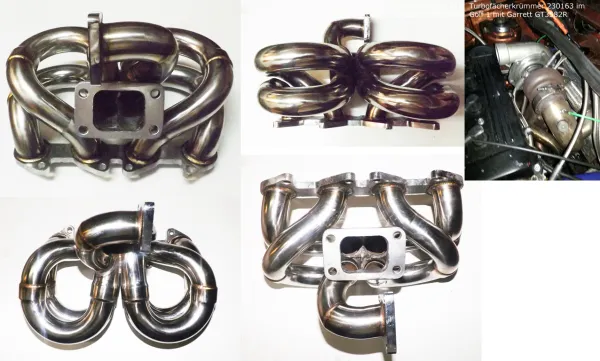

Turbo manifold for 16v Golf VW stainless steel manifold T3 flange + Audi RS2 WG flange

Scope of delivery:
- Turbo manifold 16v stainless steel (approx. 2mm wall thickness) with T3 flange + 38mm WG connection

---

Description:
- The manifold was made for the Golf 1 16v Turbo with Garrett GT3582. This means that all turbos up to GT3582 fit with the manifold. The pipes are inserted into each other at the weld seams, see also photos, to prevent tearing.
- Pipe inner diameter approx. 36mm
- T3 flange (86x45mm hole center measured) 4x M10 thread
- RS2 S2 wastegate flange 4x M8 thread

---

Suitable for:
- all 16v 1.8L and 2L VW engines in Golf 1 (not for Golf 2, 3)
- Turbocharger with T3 flange:

---

Garrett T3, Garrett T3/T4, Garrett GT3076R, Garrett GT3582R

---

Garrett GTX3071R, Garrett GTX3076R, Garrett GTX3576R, Garrett GTX3582R, Garrett GT3776, Garrett GT3782

---

T3, T3/T60, T3/T4, T3/T70, GT3076 HF, GTR-485, GTR-510, GTR-525, GTR-525 HF, GTR-550, GTR-550 HF, GTR-600 , GTR-650, GTR-650 HF

---

Optional matching accessories:
- Manifold gasket T3 for turbo
- Copper nuts M8
- Copper nuts M10
- Stud bolt M10
- Stud bolt M8
- Locking plate 38mm for wastegate
- Wastegate 38mm gasket
